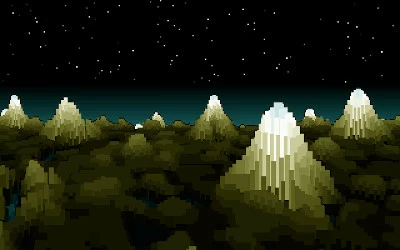

Minecraft like landscape in less than a tweet
"Enchanted" is a 256 bytes(!) program that achieved 2nd place at this years "Revision" 256 bytes competition. The music you hear is also produced by these 256 bytes of code.
Youtube Capture https://www.youtube.com/watch?v=R3SgDwyblis
ttps://2025.revision-party.net/blog/afterparty/
Download & Comment https://www.pouet.net/prod.php?which=103924
x86 assembler for MSDOS, compile with NASM)
`; "Enchanted" - 256 bytes intro for MSDOS`
`; shown at Revision Demoparty 2025`
`; original voxel engine from Rudi/Darklite ("Pluto", 2012)`
`; optimization, design, music by HellMood/DSR`
`; DosBox X recommended, use provided config file`
`; needs MIDI set to UART and about 193k cycles`
`%define skyheight 66``; literally the skyheight`
`%define le_tempo 99*2``; animation and music tempo`
`%define scapetime 15``; init time for the landscape`
`%define delay 13``; delay (0-15)`
`%define midi_inst 82``; flute`
`%define os 31``; note offset`
`org 100h`
`xchg cx,ax``; get "65536" in CX for star loop`
`mov al, 13h``; 320 x 200`
`ptop:`
`int 10h` `; set mode ; set color`
`movsx cx,bl``; Rrrolas Palette with Tomcats Bug ^^`
`xor cl,ch``; alternative code variation`
`mov ah,cl`
`mov ch,cl`
`mul cx`
`shr cx,1`
`inc bl`
`jns pmid`
`xchg cl,dh`
`pmid:`
`mov ax,0x1010`
`jnz ptop`
`les ax,[bx]``; get screen address`
`stars:`
`sub al,cl``; pseudo`
`adc [si],ch``; random`
`jz S1`
`salc``; black`
`S1:`
`stosb``; star`
`loop stars``; more stars!`
`mov ax,0x8027``; segment start and landscape seed`
`mov es, ax``; offscreen segments`
`mov gs, ax`
`xor bp,bp``; time = 0`
`L:`
`add al, ch` `; pseudo random init`
`stosb``; for the voxel landscape`
`loop L`
`DRAW2:`
`mov bl,scapetime`
`B:`
`es lodsw``; 4 neighbourhood smoothing`
`dec si`
`add ax, [es:si-257]`
`add al, ah`
`shr al, 2`
`inc ax`
`stosb`
`loop B``; often`
`dec bx`
`jnz B``; VERY often`
`mov fs,ax`
`DRAW:`
`mov si, 320`
`XLOOP:`
`xor di, di`
`mov bl, 200-skyheight-1`
`TLOOP:`
`push si`
`push di`
`shr di,1`
`sub si, di ; curve`
`pop di`
`imul si, di`
`xchg si,ax`
`lea dx,[bp+di]``; offset by time`
`mov dh,ah``; combine hi and lo byte for lookup`
`mov si,dx`
`DDD:`
`gs lodsw``; height from map`
`pop si`
`imul dx,ax,byte 6``; color compression`
`inc di`
`push dx``; remember color`
`cwd`
`div di``; divide heigth by distance -> persp`
`shld dx,di,14`
`add al,dl ; curve height by distance (horizon)`
`sub al,65 ; adjust general height`
`pop dx``; restore color`
`inc bx`
`KK:`
`dec bx``; draw line ...`
`push bx`
`imul bx,320`
`mov [fs:bx+si-1], dh`
`pop bx`
`cmp ax,bx`
`jb KK``; ...`
`Y_LD:`
`cmp di, 340`
`jnz TLOOP`
`dec si`
`jnz XLOOP`
`hlt``; sync against timer ( ~ 25 FPS )`
`push 0a000h+20*skyheight`
`pop es`
`CP:`
`mov ax,di`
`mov al,ah`
`xchg al, [fs:di]``; write sky, get voxel`
`imul dx,di,byte 117``; pseudo random`
`xor dl,dh`
`mov dh,0``; only last 8 bits`
`add dx,bp``; offset by time`
`shr dh,1``; fade yes/no`
`jnz tzu`
`clear:`
`inc di`
`jmp short noplot`
`tzu:`
`stosb``; write pixel`
`noplot:``; dont xD`
`imul di,byte 85``; pseudo randomize`
`loop CP`
`mov al,le_tempo``; set tempo`
`out 40h,al`
`inc bp`
`pusha`
`mov dx,330h``; midi port`
`mov cl,8``; 8 note trials per tick`
`M:sub bp,byte 12`
`js nomuse``; luxury, cold start <3`
`test bp,31`
`jnz nomuse`
`shld bx,bp,11``; time to note`
`mov si,preface ; output midi data from below`
`outsb``; set instrument command`
`outsb``; instrument number`
`outsb``; change channel parameter`
`outsb``; panning`
`imul ax,cx,byte 16`
`out dx,al``; send panning value`
`outsb``; send play note command`
`and bx,byte 7``; reduce to 8`
`mov al,[bx+si]``; read note`
`out dx,al``; send note value`
`imul ax,cx,byte delay ; calculate ...`
`add al,127-delay*8``; ... volume`
`out dx,al``; send volume value`
`nomuse:`
`loop M`
`nodr:`
`popa`
`GG:`
`in al,0x60``; wait for ESC`
`dec al`
`jnz DRAW`
`QQQ:`
`preface:`
`db 0xc3,midi_inst``; 0xC3 = change instrument = RET`
`db 0xb3,0xa,0x93``; stereo panning setup`
`notes:`
`db os+27+12,os+23+12,os+30,os+16-12,os+23+12,os+20+12`
`db os+25+2`
`db os+20-12`
#programming #dev #technology
