Wiring Diagram gut check

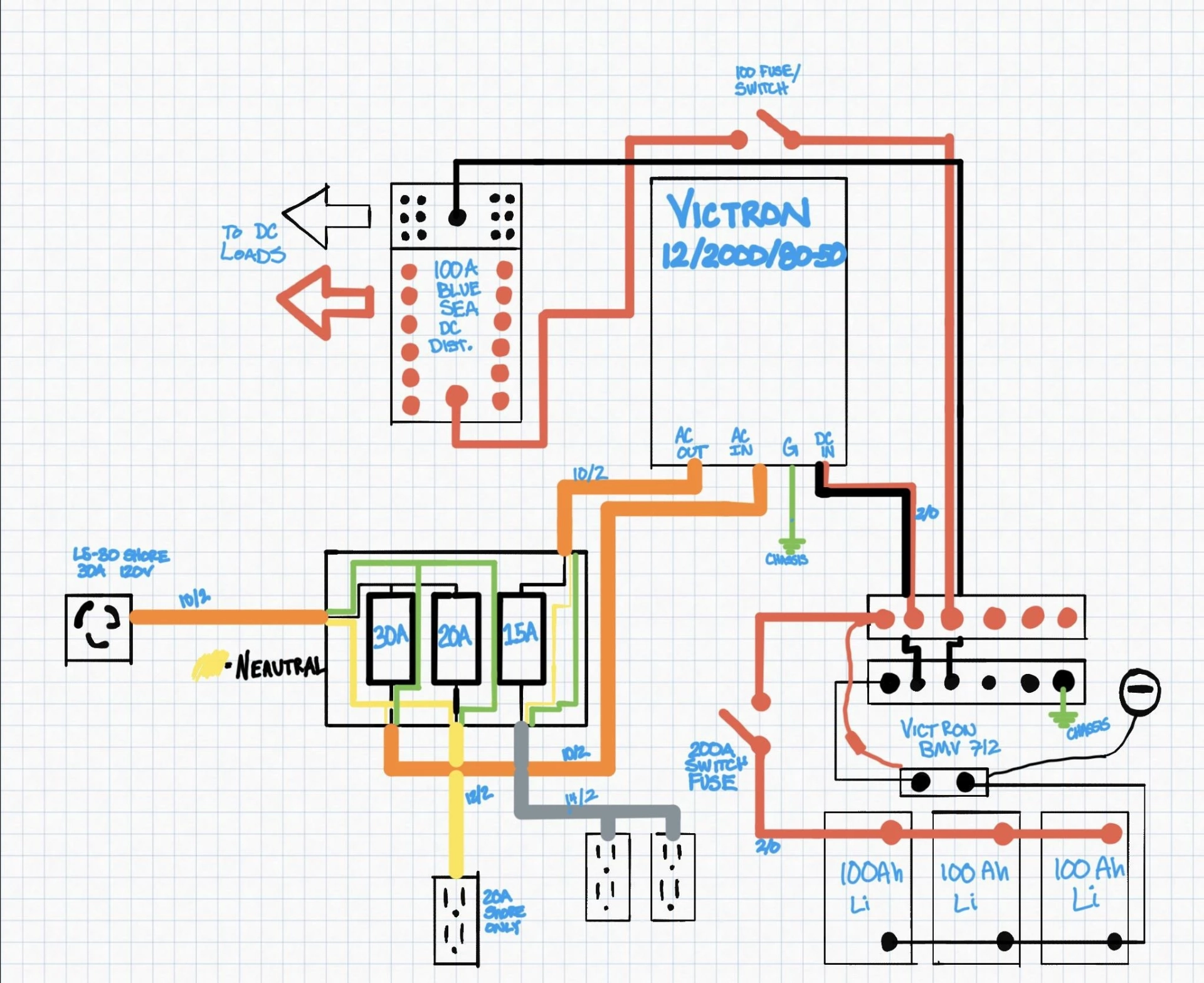

Hello, I am designing a cargo trailer electrical build (sorry it’s not a van), and I figured this would be the best place to post this, I just won’t have a DC-DC charging system. I’m looking for advice on my diagram so far. I’m not sure if I’m doing my AC ground connection right. My understanding is that my 12v system and inverter chassis needs to be grounded. Shore power does not as it’s grounded at the source?
All my DC loads will be fused at the dist block and wire size according to max draw.
Please note that I’m planning on getting this checked by a professional prior to install to get a OK. Just looking to see if I’m on the right track and if there are any suggestions.
Not pictured is my solar yet that I’m still working on. I’m thinking of running 2x 340W, 40v panels in series with a Victron 100/50 MPPT.
Thank you
