Electric System Check!

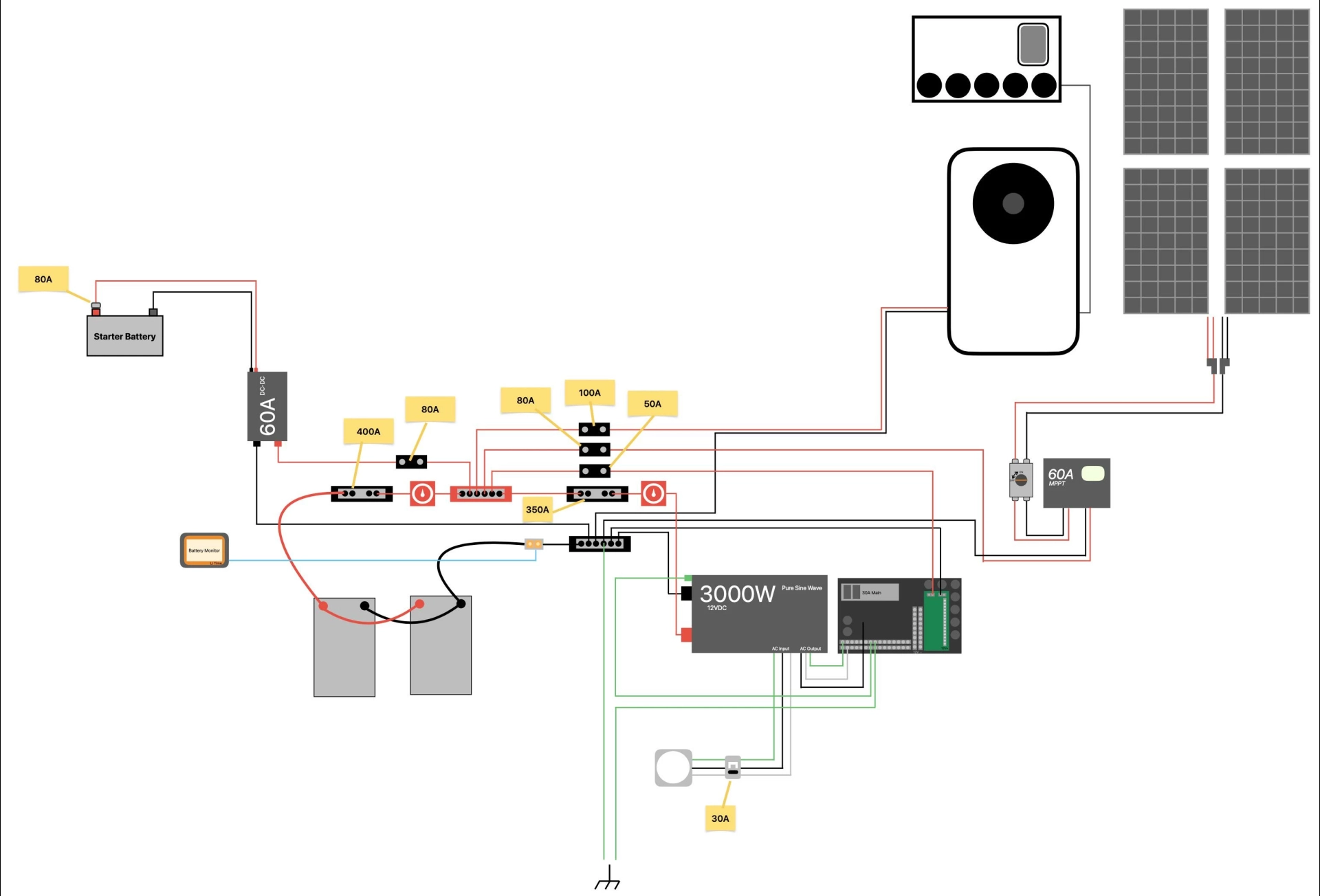

Finished putting together my wiring diagram for my first electrical system build. Just curious if anyone notices any issues!
Biggest remaining question I have is where does the inverter casing ground get connected to? (Currently I have it going to the WFCO distribution box ground bus bar which will be connected to the chassis) But should this go to the main negative bus bar instead?
First time doing this so a big learning curve but excited to start the build! Thanks everyone!
