Electrical nearly done - what do you think of layout?

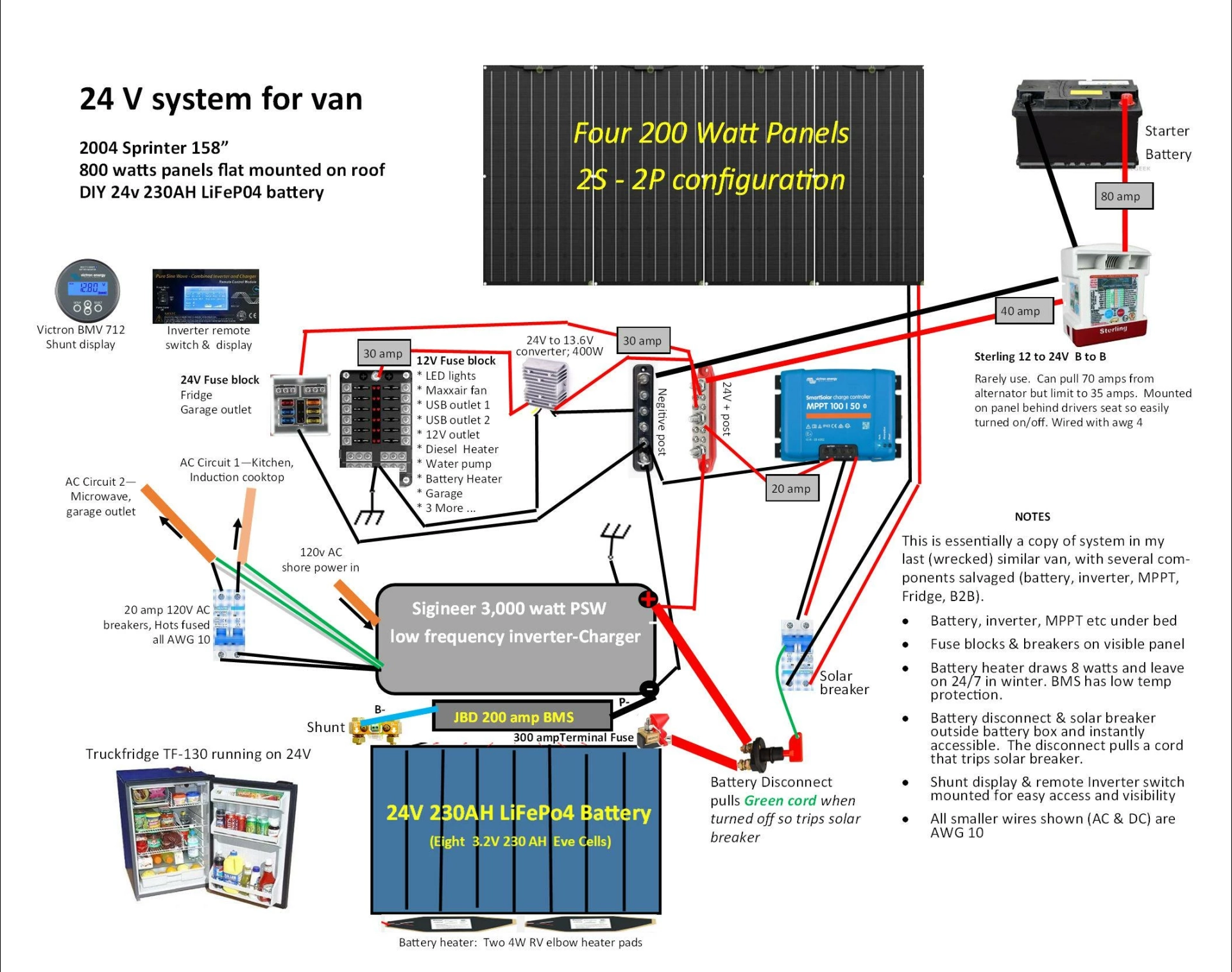

I am slowly progressing building a replacement for the 2003 Sprinter that got totaled. Electrical is mostly in and layout is similar to what worked really well before. It is neater and I doubled solar from 400W to 800W. Fortunately most of the major components under the bed survived the rollover crash and were salvageable.
I like to see things at a glance so fuse blocks, breakers, displays, master shut-off and B2B are all on panels and instantly visible without having to open anything up. Battery, BMS, inverter, MPPT, 24-12 converter are in a piano-hinged box under bed. There is some more work to do before I post an image...
Comments on anything you would do different and questions very welcomed!
