Does pcie 5.0 and pcie 4.0 connectors which goes to motherboard have visual difference?

Does pcie 5.0 and pcie 4.0 connectors which goes to motherboard have visual difference?

So I have noticed that all PCIE 5.0 gen cards what I have, have different looking pins at the connector.

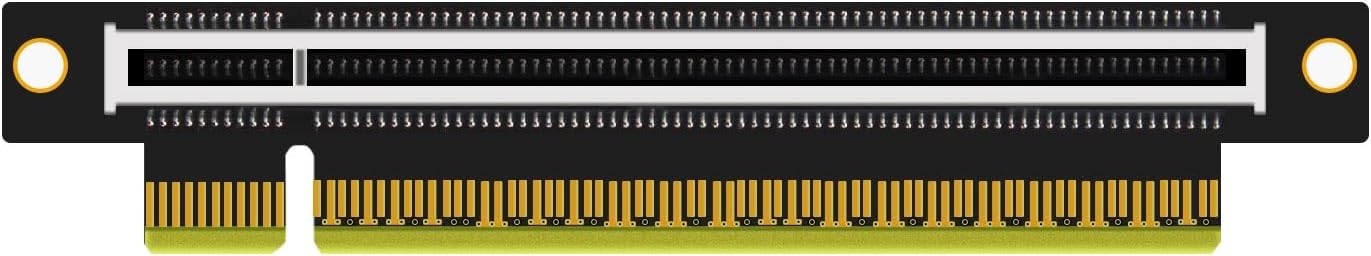

For example this pcie 5.0 gen card has these small "T" shaped connectors:

https://m.media-amazon.com/images/I/51cJxcAaYNL.\_AC\_SL1500\_.jpg https://m.media-amazon.com/images/I/51cJxcAaYNL._AC_SL1500_.jpg

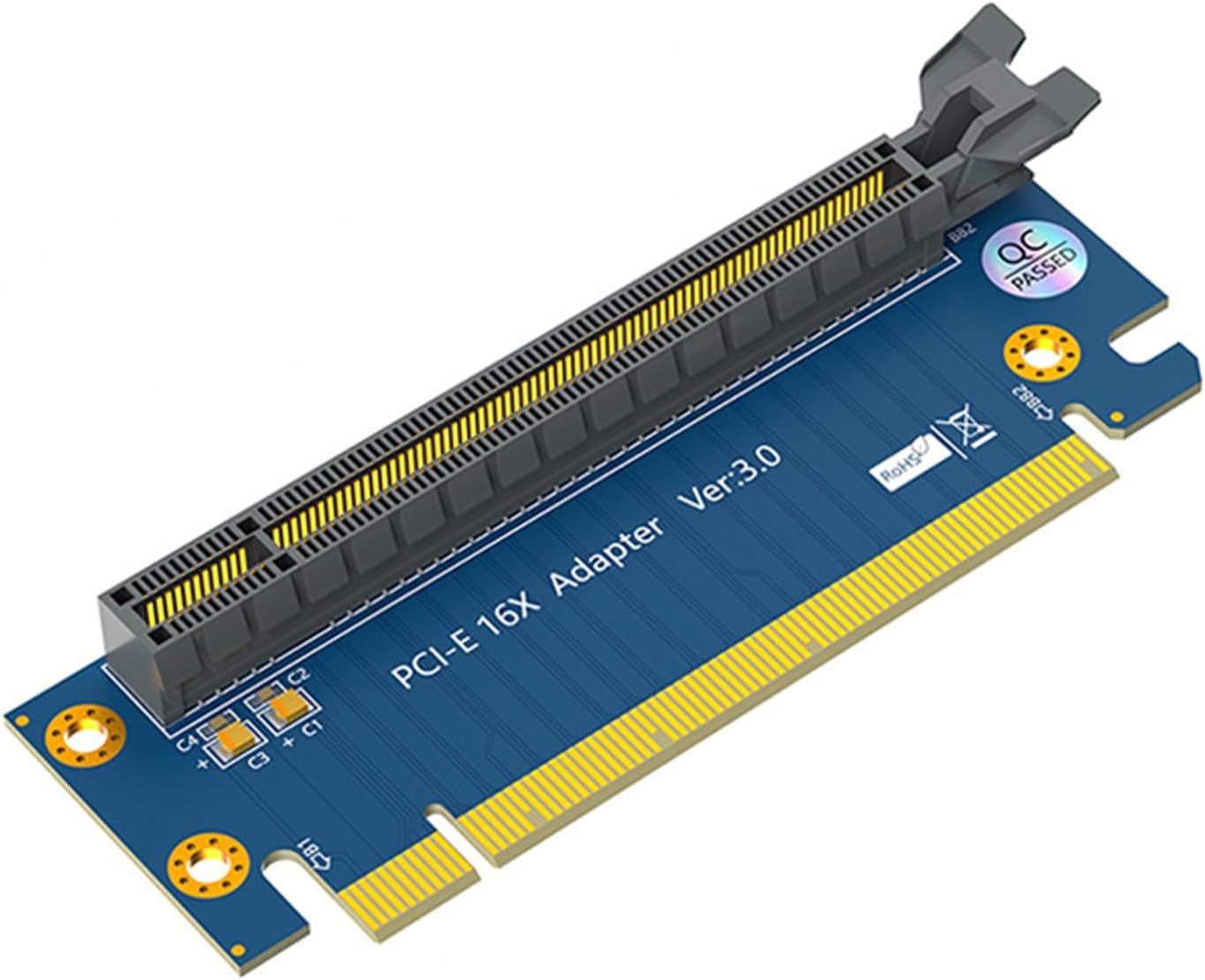

And this PCIE 4.0 riser card does not have them, only straight golden pins.

https://m.media-amazon.com/images/I/61-8e+l1g8L.\_AC\_SL1500\_.jpg https://m.media-amazon.com/images/I/61-8e+l1g8L._AC_SL1500_.jpg

So my question is, what is this difference? Does it define which is pcie 5.0 and which is pcie 4.0 ? Or CAN a straight pin connector also work as 5.0 speeds?

Why I ask this, I wan to find out are some PCIE 5.0 adapters just advertised as 5.0 but actually 4.0 because they do not have those upside down T shaped golden pins.
#technology #hardware
