I’m trying to import a DXF into a CNC wire bending machine, but I’m running into a strange issue.
I’m trying to import a DXF into a CNC wire bending machine, but I’m running into a strange issue.

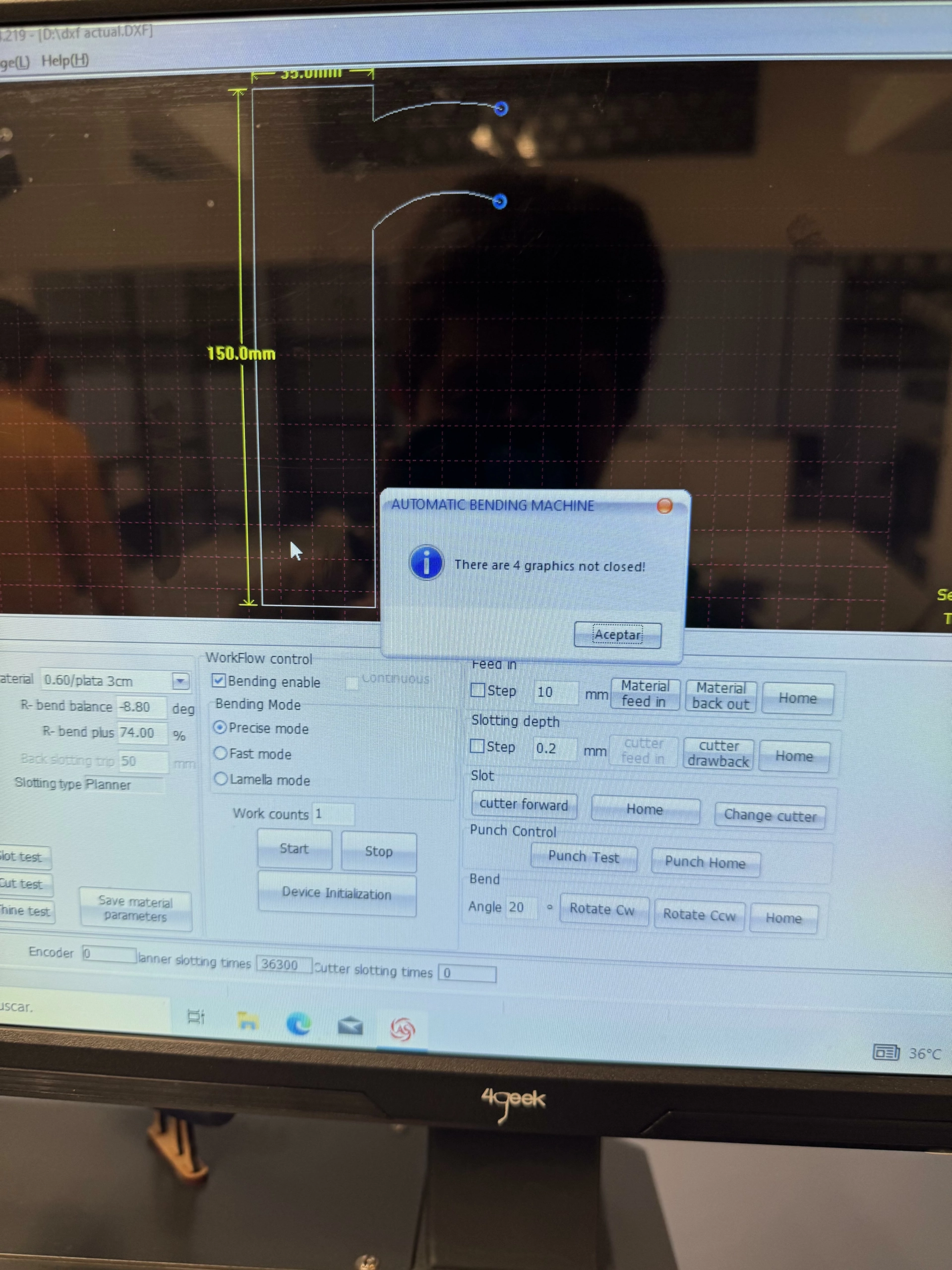

In SolidWorks, my sketch is completely closed and all the entities are coincident and tangent. After exporting it as a DXF, the machine recognizes most of the geometry, but it stops recognizing the last line and the tangent arc where they connect. It seems like the problem happens specifically where a spline or tangent arc meets a straight line.
#industry
source
I’m trying to import a DXF into a CNC wire bending machine, but I’m running into a strange issue.
In SolidWorks, my sketch is completely closed and all the entities are coincident and tangent. After exporting it as a DXF, the machine recognizes most of the geometry, but it stops recognizing the last line and the tangent arc where they connect. It seems like the problem happens specifically where a spline or tangent arc meets a straight line.
#industry
